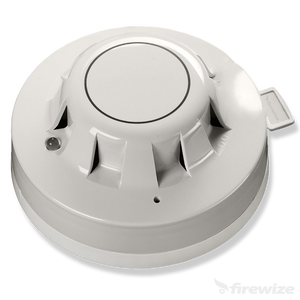

The Ampac XP95 (4106-2001) Photoelectric (Optical) Smoke Detector that utilises the scattered light principle to reliably detect visible smoke particles suspended in the air.

This detector is particularly effective in environments where slow-burning or smouldering fires are likely, such as in areas with furnishings, electrical equipment, or stored materials.

The advanced optical sensor technology ensures early detection of visible smoke, making it a dependable choice for comprehensive fire protection.

Ideal for commercial and residential applications, the Ampac XP95 Photoelectric / Optical Smoke Detector integrates seamlessly into addressable Ampac fire detection and alarm systems, offering enhanced safety and peace of mind.

Approvals

  • AS ISO 7240.7-2004 - Point-type smoke detectors using scattered light, transmitted light or ionization (ISO 7240-7:2003, MOD)

Specifications

  • Operating Voltage: 17 to 28 VDC
  • Quiescent Current: 340µA at 24 VDC
  • Alarm Current: 3.5mA at 24 VDC
  • Dimensions: 100mm Diameter x 50mm High including base
  • Operating Temperature Range: -20°C to +60°C (no icing)
  • Relative Humidity: 0 to 95% (non condensing)
  • Ingress Protection rating (IP): IP23D (indoor)
  • Weight: 157 grams including base

Compatibility

The XP95 Photoelectric smoke detector uses the XP95 intelligent detector base which incorporates the unique XPERT card and is used to configure the address of the detector.

  • XP95 Intelligent Detector Base

The Ampac XP95 Addressable Photoelectric (optical) smoke detector is also compatible with the following fire alarm control panels (FACP);

  • Ampac Loopsense (AS7240) Addressable;
  • Ampac Firefinder Plus (AS7240) Addressable;
  • Ampac Firefinder (Legacy) Addressable AS4428.

~ Discounts For Bulk Purchases Applied at Checkout
~ Excludes Intelligent XP95 base
