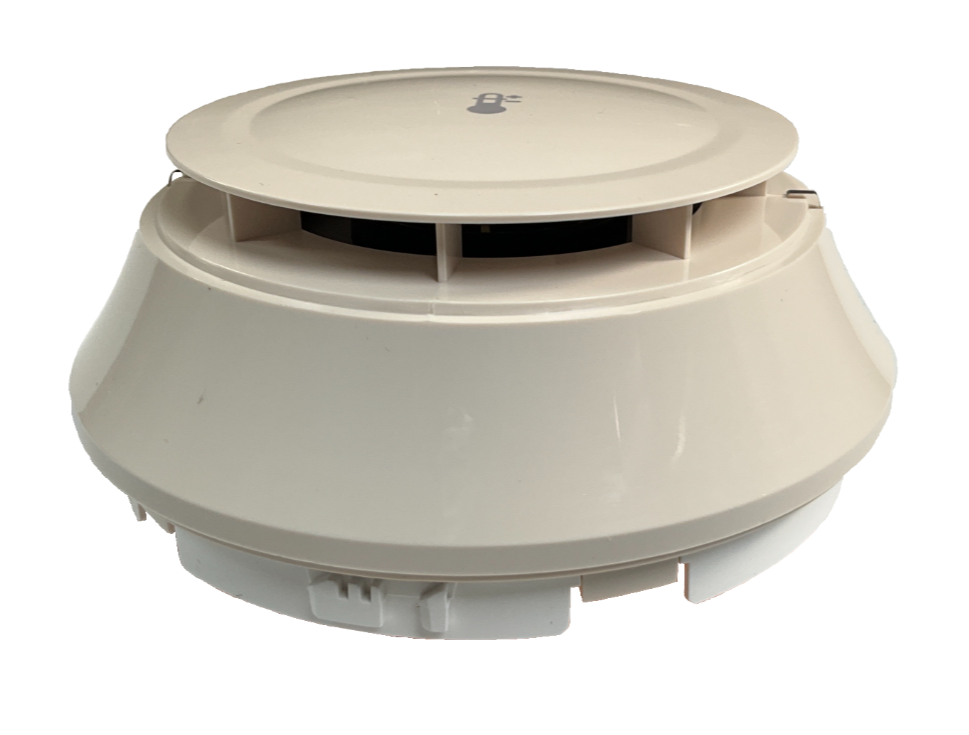

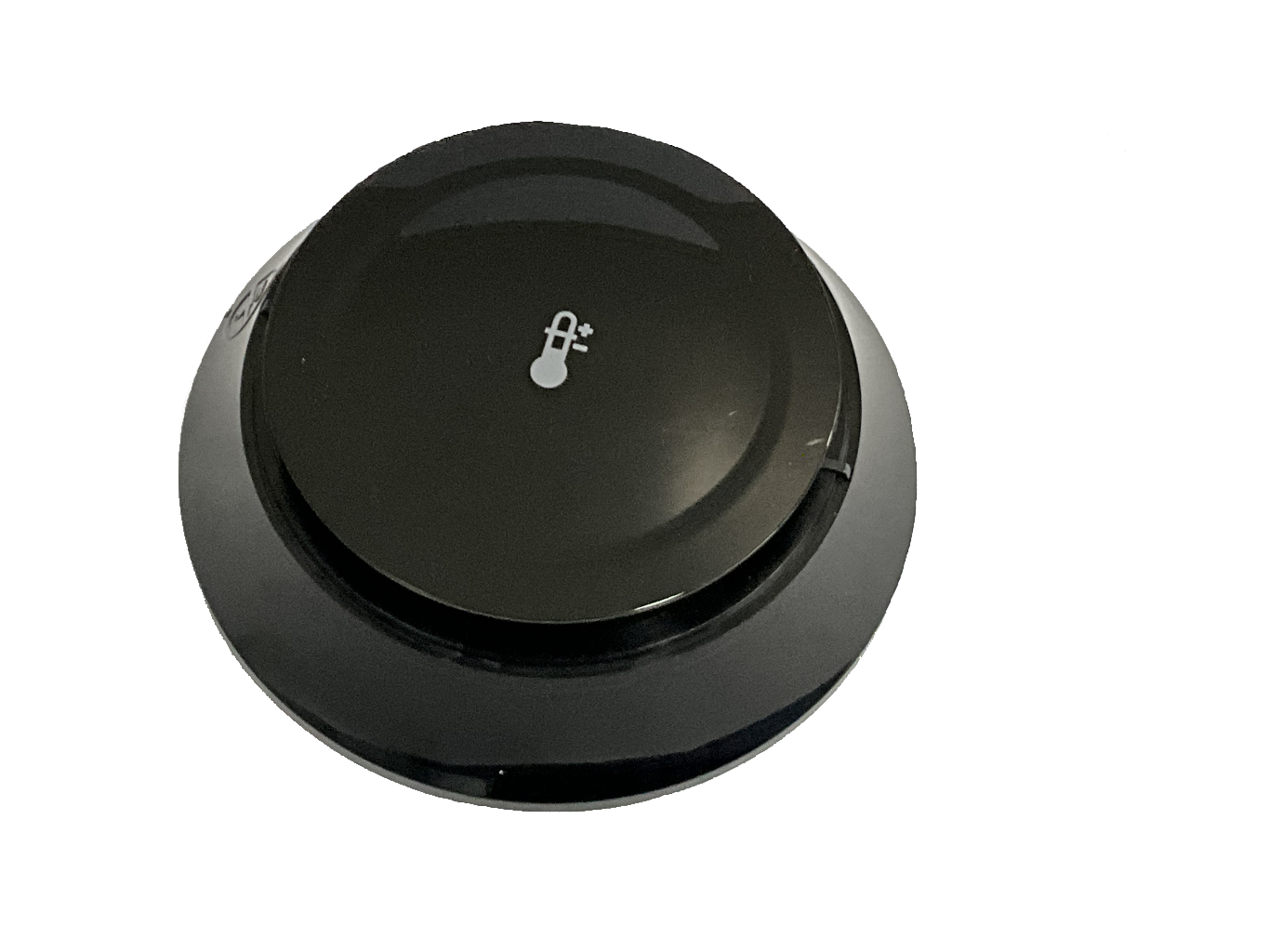

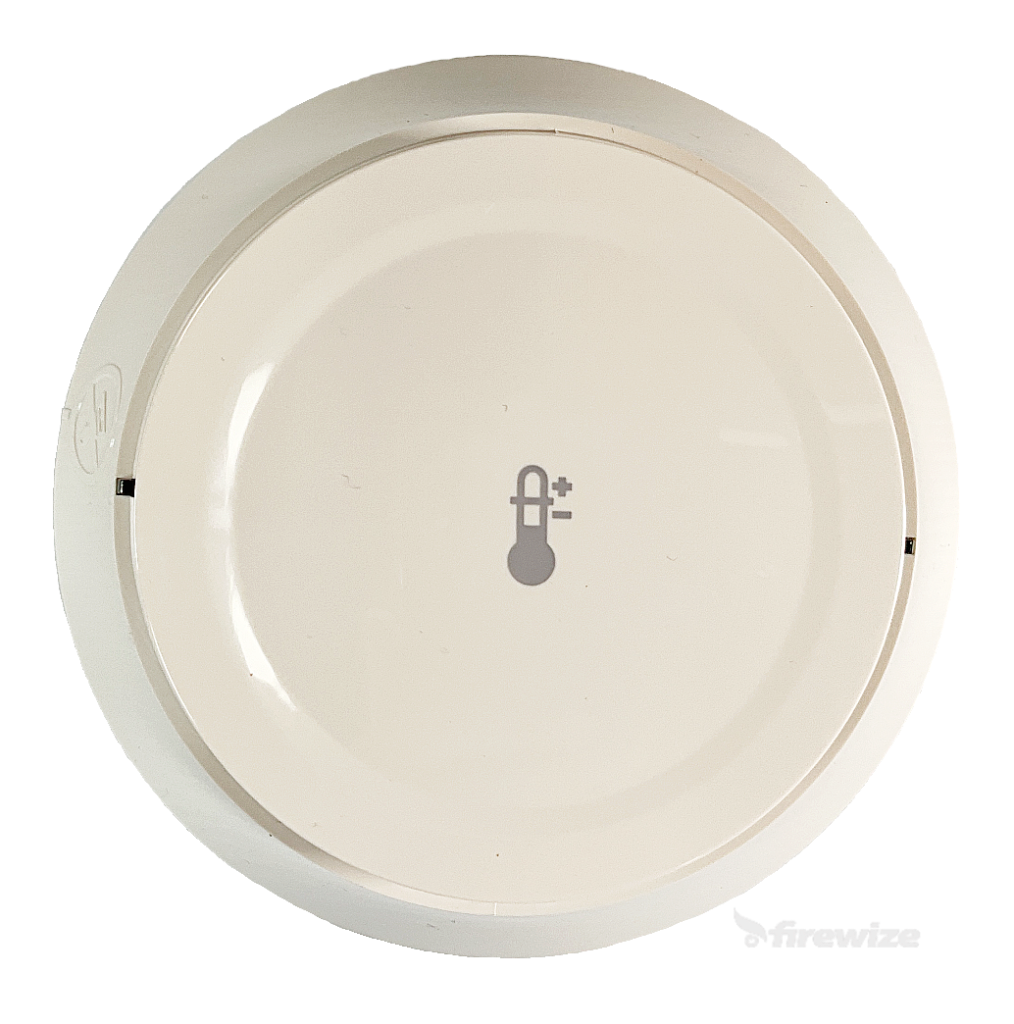

The System Sensor / Notifier FST-951 series addressable heat (thermal) detectors are compatible with Fire Alarm Control Panels incorporating the FlashScan® protocol such as the Addressable Notifier / Honeywell AFP-3030 legacy AFP-2800 & AFP-2802.

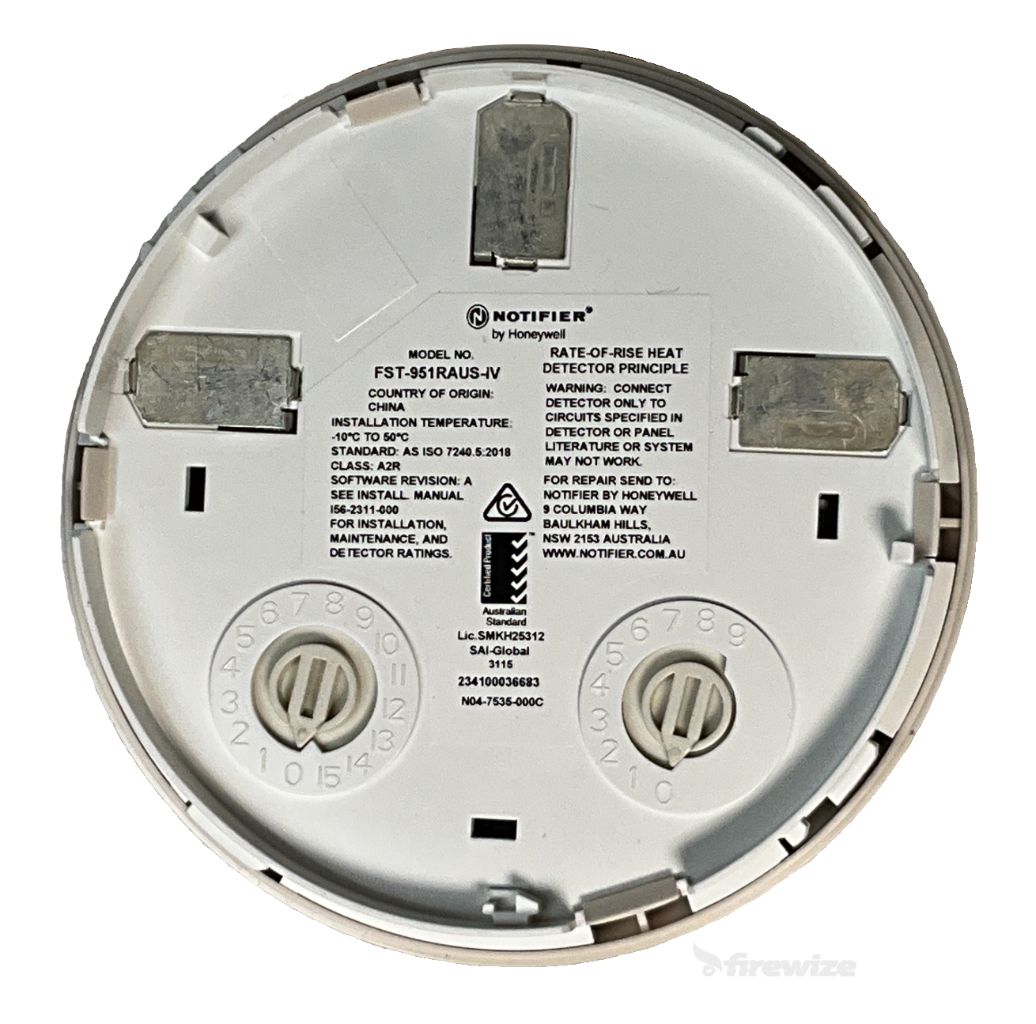

Each detector comes complete with dual rotary address switches to provide a unique address on an addressable circuit for each detector.

The FST-951 heat detectors uses an innovative thermistor sensing circuit for a range of detection operating temperature options for cost-effective, intelligent property protection;

There are three variants of this detector (excluding colour options) that are listed below; Rate of Rise, Fixed Standard Temperature and High Fixed Temperature.

The sleek look and feel also incorporates a modern white contemporary design.

• Quick fit lock in system for speedy replacement;
• Point ID capability allows each detector's address to be easily set using the integrated dual rotary address switches, providing exact detector address identification.


Specifications

• Dimensions: 104mm diameter and 53mm high (including base)
• Weight: 95g
• Protocol: FlashScan®
• Operating Temperature Range: 10% - 93% non-condensing
• Operating Humidity Range: 10% - 93% non-condensing
